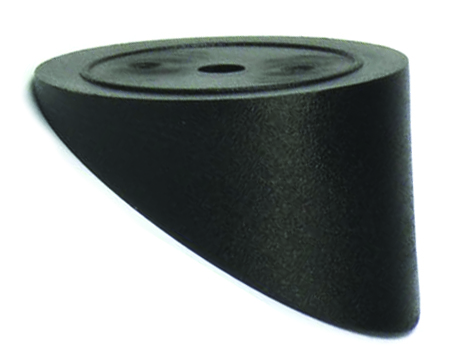

Deckorators Designer Stair Adaptors - 3 Colors Available


Deckorators Desinger Stair Adaptor
Your Price: $7.59
Manufacturer: DECKORATORS

Product Options

Color:
Free shipping on orders of $150 or more!
*Please Note: These adaptors work in conjunction with the Designer Baluster Connectors shown in the related products section below. They do not take the place of the connector.

20 per pack. Combines with the Designer Baluster Connectors for all 35 degree stair installations.  Designer Stair Adapors are 1-3/8" wide and 1" at it's tallest point. (Select from 6 different colors above.) Ships out via UPS Ground (arrives in 3 - 5 business days).

Installation Instructions:
Step 1: Cut stair rails at the proper angle. Set stair post and lay both top and bottom 2x4's on the treads next to the post and then mark.
Step 2: Lay top and bottom 2x4's next to each other with the top 2x4 turned upside down. Align 2x4's edges. Mark 5 1/2" on the center, out from center, attach stair adapter. Notice the bottom 2x4 adapter is pointing in the opposite direction as adapter on the top 2x4.

Step 3: IMPORTANT: Screw the adaptoer into the 2x4 verically a bit first to get it started, then move the screw back to the right angle to finish, DO NOT over tighten, this can cause the adapter to move off center.
SCREW DOWN SLOWLY TO A SNUG FIT.

Step 4: Make sure the adapters are aligned properly, Attach the Bottom 2x4 to the post, insert balusters and work on top 2x4.

NOTE: Stair Adapters are designed for a 35 degree angle. Using 26" balusters you will have over 37" rail height. Therefore you may need to run the bottom 2x4 along the side of the stringer, rather than on the nose of the treads.

Have a Question about this product? Please feel free to email us at admin@deckdepot.com
