Deckorators Stair Connectors

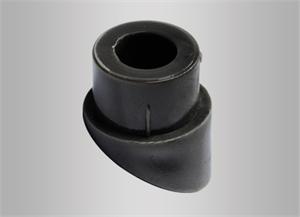

Deckorators Black Stair Connectors
Your Price: $7.45
Manufacturer: DECKORATORS

Product Options

Color:
Free shipping on orders of $150 or more!
20 pack with screws - The Stair Connectors are designed to work with deck rails for stairs between 30 and 35 degrees. Ships out via UPS Ground (arrives in 3 - 5 business days).

Installation Instructions:

Step 1: Cut stair rails at the proper angle. Set stair post and lay both top and bottom 2x4's on the treads next to the post and then mark.

Step 2: Lay top and bottom 2x4's next to each other with the top 2x4 turned upside down. Align 2x4's edges. Mark 5 1/2" on the center, out from center, attach stair adapter. Notice the bottom 2x4 adapter is pointing in the opposite direction as adapter on the top 2x4.

Step 3: IMPORTANT: Screw the adaptoer into the 2x4 verically a bit first to get it started, then move the screw back to the right angle to finish, DO NOT over tighten, this can cause the adapter to move off center.
SCREW DOWN SLOWLY TO A SNUG FIT.

Step 4: Make sure the adapters are aligned properly, Attach the Bottom 2x4 to the post, insert balusters and work on top 2x4.


Have a Question about this product? Please feel free to email us at admin@deckdepot.com
